GMC SUBURBAN 4X4 TRANSFER CASE PARTS
Suburban transfer case actuator motor and front axle
actuators
|
 |
1430003
1997-1999 Suburban Front Axle
Differential Actuator
109.95
The Electric
Actuator Is Used To Engage Front Axel Differential In And Out Of Four Wheel
Drive.
- Durable Plastic Housing
- Works With Electronic Or Manual 4x4
- Direct Bolt On And Plug In
- Replaces Dealer Number 26060073
- Fits 1997, 1998, 1999
GMC Suburban 1500 and 2500
- Also Fits 1996 GMC Suburban With Plastic
Case
- Replacement Suburban 4x4 Actuator Switch Built To OEM
Specifications
- 600-101
|
 |
600600
1992-1996 Suburban Front Axle Actuator Wiring Harness 49.95
- Only For Use w/Actuator 1430003 as Upgrade
- Wire (s) May Need To Be Spliced
- Correct 5 Pin Male Connector For Actuator 1430003
- Replaces Dealer Number 88959465
- Fits 1992, 1993, 1994, 1995, 1996 Suburban 1500 and 2500
- Fits 1996 Chevrolet Suburban With Plastic
Case
- Install when replacing the thermal style axle actuator with
an electronic one
|
 |

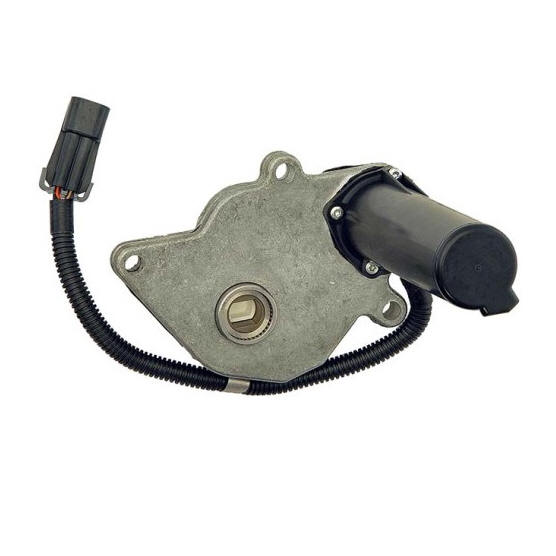

1420001
1998-1999 GMC Suburban Transfer
Case Motor W/Auto 4WD 189.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On GMC Suburban Equipped With Auto 4x4.
- RPO "NP8" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High,
Low And Auto)
- Works With Dash Mounted 4 Button Switch (4HI, 4LO, 2HI & Auto
4WD)
- Replaces Dealer Number 12474401

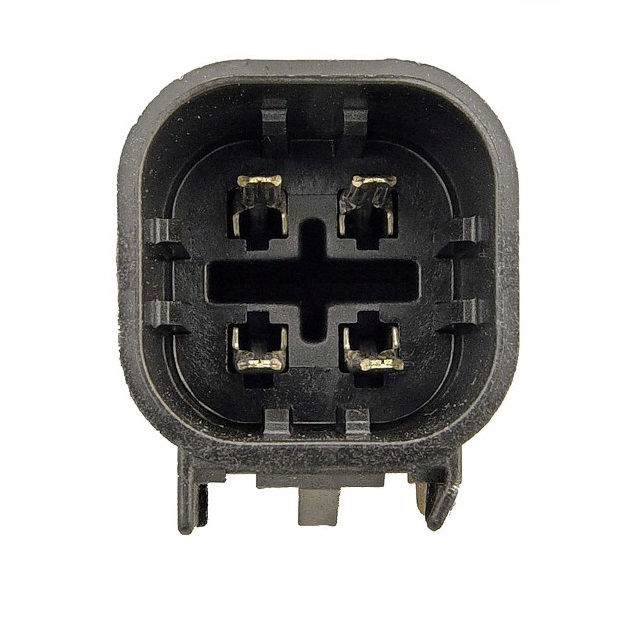

- Rectangular 6 Pin Plug Connector & Square 4 Pin Plug
- New Construction, Not Refurbished
- Direct Bolt On And Plug In
- Fits 1998, 1999 GMC Suburban 1500
and 2500 With Auto 4 Wheel Drive
- Replacement Suburban Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
- 600-901
|
 |

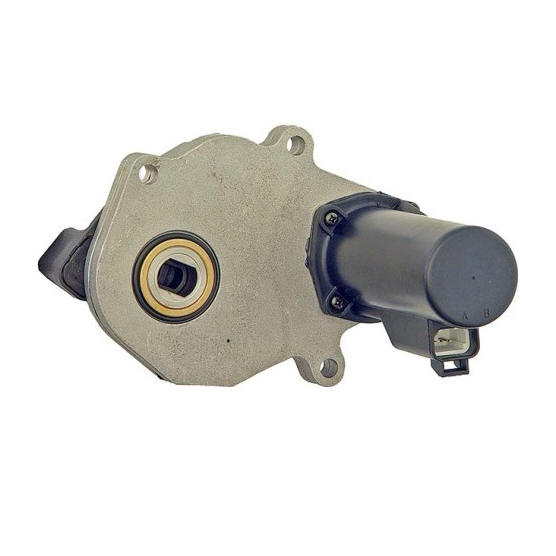

1420002
1996-1999 Suburban Transfer
Case Actuator Motor 144.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Suburban Equipped With Electronic Shift 4x4.
- RPO number "NP1" (white tag with option
codes in glove box)
- 2 Speed Electronic Shift (4 Wheel High And
Low)
- Works With Dash Mounted 3 Button Switch (4HI, 4LO, 2HI)
- Replaces Dealer Number 12386247 And 88996604

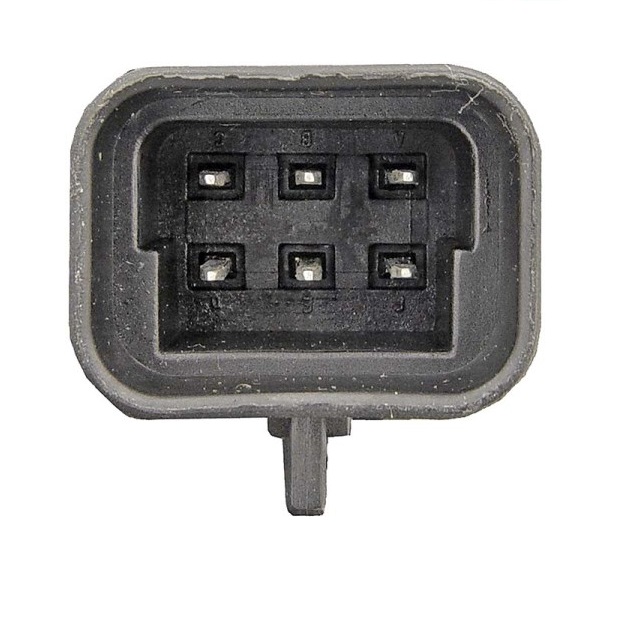

- Rectangular 2 Pin Plug Connector & Rectangular 6 Pin Plug Connector
- Direct Bolt On And Plug In
- All New Construction, Not Refurbished
- Fits 1996, 1997, 1998, 1999 GMC Suburban
1500 and 2500
- Does Not Fit "NP8" Automatic AWD 5 Button Switch (4HI, 4LO, 2HI,
Auto, Neutral)
- Replacement GMC Suburban Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
- 600-902
|
 |
1430000
1992-1995 GMC Suburban
4WD
Front Axle Differential Actuator 89.95
The Electric
Actuator Is Used To Engage Front Axel Differential In And Out Of Four Wheel
Drive.
- 2 Wire Connector (no longer available thru dealer)
- Works With Electronic Or Manual 4x4
- Direct Bolt On And Plug In
- Replaces Dealer Number 26013495
- Actuator Fits 1992, 93, 94, 1995 GMC 1500 Suburban
- Actuator Fits 1992, 93, 94, 1995 GMC 2500 Suburban
- Actuator Fits 1996 GMC Suburban With Two Wire
Connector (metal case)
- New Replacement GMC Suburban 4x4 Actuator Built To OEM
Specifications
|
|
