GMC
SIERRA |
GMC SIERRA TRANSFER CASE
MOTOR
Sierra transfer case actuator motor shift motor encoder
motor 4x4 switch
|
 |
1420009

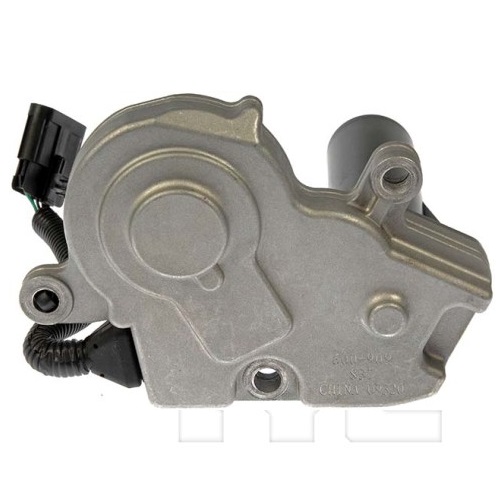

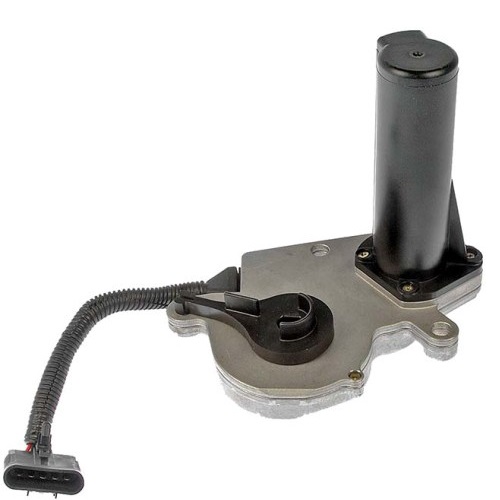

2003-2007 Sierra Transfer Case Shift Motor Actuator NP8
249.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On GMC Sierra Equipped With Electric 4x4
- RPO "NP8" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High, Low And Auto)
- 1 Oval 7 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 88962314
- All New Components, Not Refurbished
- Factory Tested
- No Core Charge
- Fits 2003, 2004, 2005, 2006, 2007
Sierra 1500
- Fits 2003, 2004, 2005, 2006, 2007
Sierra 2500
- Fits New Venture Gear 236, 246 Transfer Case Option Code NP8 (will not
fit NR4)
- Replacement Sierra Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor Transfer Case Shift Motor
|

 |
1420008
2003-2006 Sierra 2500 3500 Transfer Case Motor NP1
224.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On Sierra Equipped With Electric 4x4
- RPO "NP1" (white tag with option
codes in glove box) indicates auto electronic shift
- 2 Speed Electronic Shift (2Hi, 4Hi, 4 Low)

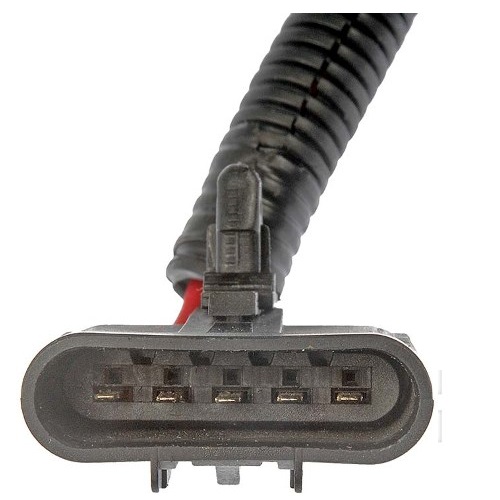

- 1 Rectangular 5 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 88962312 , 19125578 , 19125856
- All New Components, Not Refurbished
- Factory Tested
- No Core Charge
- Fits 2003, 2004, 2005, 2006 GMC Sierra 2500 and 3500 With NP1
- Also Fits 2007 Classic (body style
introduced in '99)
- Fits New Process 263 Transfer Case Option Code NP1 (will not
fit code NP8)
- Replacement Sierra Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
|
 |
1240072
2003-2006 Sierra Four Wheel Drive Dash Switch "NP8" 48.95
- Dash Mounted 4 Button (4HI, 4LO, 2HI, Auto) 4x4 Switch
- Sierra With Auto 4WD Only (RPO Code "NP8")
- Gray With White Print
- Direct Bolt On And Plug In
- Fits 2003, 2004, 2005, 2006 Sierra 1500 and 2500 With NP8
- Also Fits 2007 Classic
- Replaces Dealer Number 15136039, 19259313
|
 |
1240153
2003-2006 Sierra 4 Wheel Drive Dash Switch "NP1" 69.95
- Dash Mounted 3 Button (4HI, 4LO, 2HI) 4x4 Switch
- Sierra Without Auto 4WD Only (Rpo Code "NP1")
- Gray With White Printing
- Direct Bolt On And Plug In
- Fits 2003, 2004, 2005, 2006 GMC Sierra 2500 With NP1
- Fits 2003, 2004, 2005, 2006 GMC Sierra 3500 With NP1
- New Replacement Sierra 4x4 Dash Switch Built To OEM
Specifications
|
 |
1420007
2003-2005 Sierra 1500 Transfer Case Actuator Motor NR4
164.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On GMC Sierra Pickup Equipped With Electric 4x4
- RPO "NR4" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High, Low And Auto)
- 1 Rectangular 7 Pin Plug
- Direct Bolt On And Plug In
- Replaces Dealer Number 88984528
- All New Components, Not Refurbished
- Factory Tested
- No Core Charge
- Fits 2003, 2004, 2005 GMC Sierra 1500
- Fits Borg Warner 4484 Transfer Case Option Code NR4 (will not
fit code NP8)
- Replacement Sierra Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
|
 |
1420001
1999-2002 Sierra Transfer
Case Actuator Motor W/Auto 4WD 174.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On GMC Sierra Pickup Equipped With Auto 4x4.
- RPO "NP8" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High,
Low, Auto)
- Uses Dash Mounted 4 Button Switch
(4HI, 4LO, 2HI & Auto
4WD)
- Direct Bolt On And Plug In
- Replaces Dealer Number 12474401
- 2 Connectors, 1 Rectangular 6 Pin Plug & 1 Square 4 Pin Plug
- All New Construction, Not Refurbished
- Fits 1999, 2000, 2001, 2002 GMC Sierra 1500
With Automatic 4 Wheel Drive
- Fits 1999, 2000, 2001, 2002 GMC Sierra 2500
With Automatic 4 Wheel Drive
- New Replacement Sierra Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
|
 |
1420006
2001-2002 GMC Sierra Transfer
Case Actuator Motor 164.95
The Electric
Actuator/Motor Is Used To Engage Transfer Case In And Out Of Four Wheel
Drive On GMC Sierra Pickup.
- RPO "NP1" (white tag with option
codes in glove box) indicates auto electronic shift
- Automatic Electronic Shift (4 Wheel High,
Low And 2 Wheel Drive)
- Works With Dash Mounted 3 Button Switch
(4HI, 4LO & 2HI)
- Direct Bolt On And Plug In
- Replaces Dealer Number 12478096
- Dorman Number 600-907
- 2 Connectors, 1 Rectangular 6 Pin Plug & 1 Oval 2 Pin Plug
- All New Construction, Not Refurbished
- Fits 2001, 2002 Sierra 2500
With Automatic 4 Wheel Drive
- Fits 2001, 2002 Sierra 3500
With Automatic 4 Wheel Drive
- New Replacement GMC Sierra Transfer Case Actuator Built To OEM
Specifications
- Also Called Encoder Motor
|
 |
1430203
1999-2002 GMC Sierra Four Wheel Drive Dash Switch 48.95
- Dash Mounted 4 Button (4HI, 4LO, 2HI & Auto
4WD) 4x4 Switch
- Sierra With Auto 4WD Only (RPO Code "NP8")
- Gray With White Printing
- Direct Bolt On And Plug In
- Fits 1999, 2000, 2001, 2002
Sierra 1500 Pickup Truck NP8
- Fits 1999, 2000, 2001, 2002
Sierra 2500 Pickup Truck NP8
- New Replacement Sierra 4x4 Switch Built To OEM
Specifications
|
|
|
